Floor Drain Protection

Your solution to stop flooding caused by drainage issues

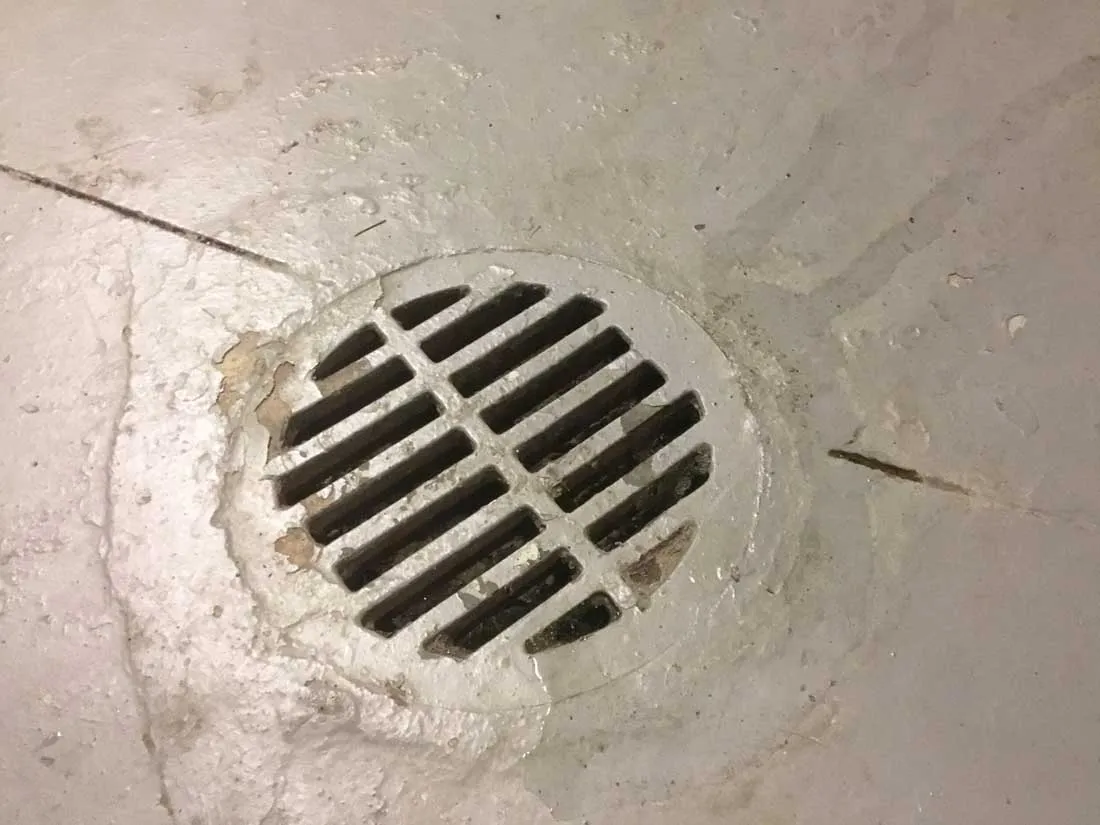

Flooding can arise from many different sources. We found that many of our clients were not only flooding from rising water and wind-driven rain, but flooding on their property was occurring because of a backup of water coming from the floor and flood drains. Storm surge, King Tides, and heavy rainfall were causing flooding to our client’s properties creating thousands of dollars in damage.

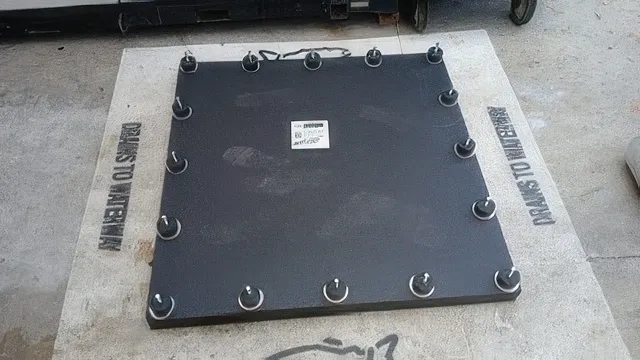

Our clients needed a solution to their problem and we found the answer. We used our top of the line, marine-grade, light weight, American-made, custom designed FRA Flood Panel, along with our superior gasketing system to create the solution.

Get a quote

Designed to withstand hash environments

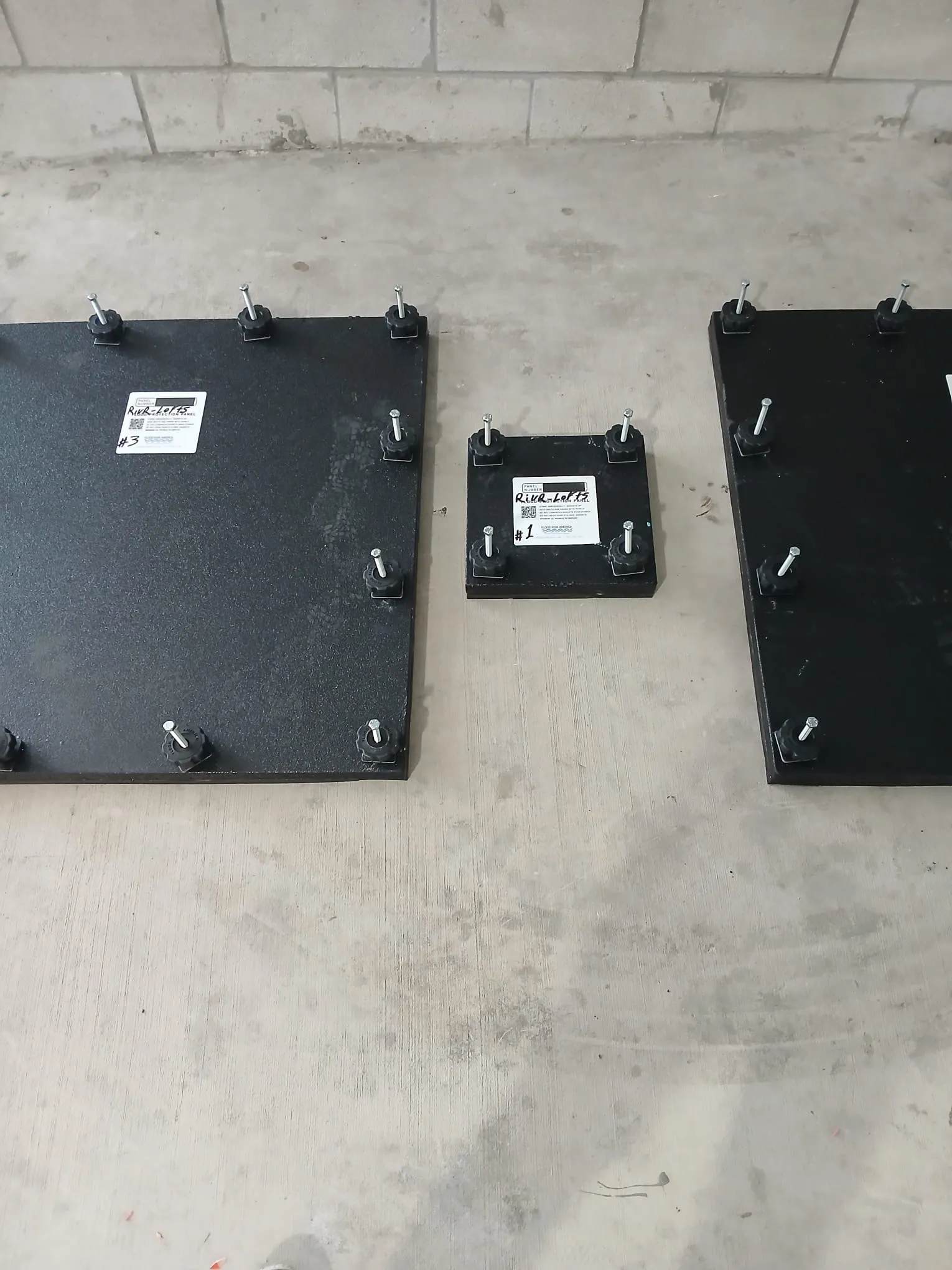

The FRA Floor Drain Protection has been scientifically developed to withstand harsh saltwater environments with technology utilized in both aerospace and vessels from the United States Navy and Air Force. The FRA Floor Drain Protection will work on any drain shape and size. We have created both circular, rectangular, and irregularly shaped protection customized to our client’s needs and demands.

The gasket for our floor drain protection are closed cell sponge Neoprene/EPDM/SBR blend, which combines the best qualities of all three rubber elastomers which creates an excellent gasket material that can be used in many indoor and outdoor gasketing applications that require a temperature range of -40 °F to + 200 °F. Neoprene/EPDM/SBR closed cell sponge is resistant to ozone, sunlight, and oxidation. Style AG141B is UL-94-HF-1 listed and passes the flammability specifications of FMVSS-302. It is also UL157, UL50, UL508, UL48 and UL50E listed and is classified as “2A1” under ASTM D 1056-07.

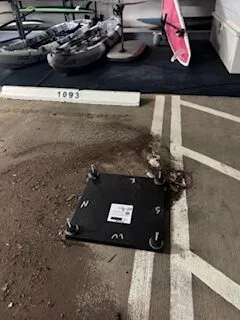

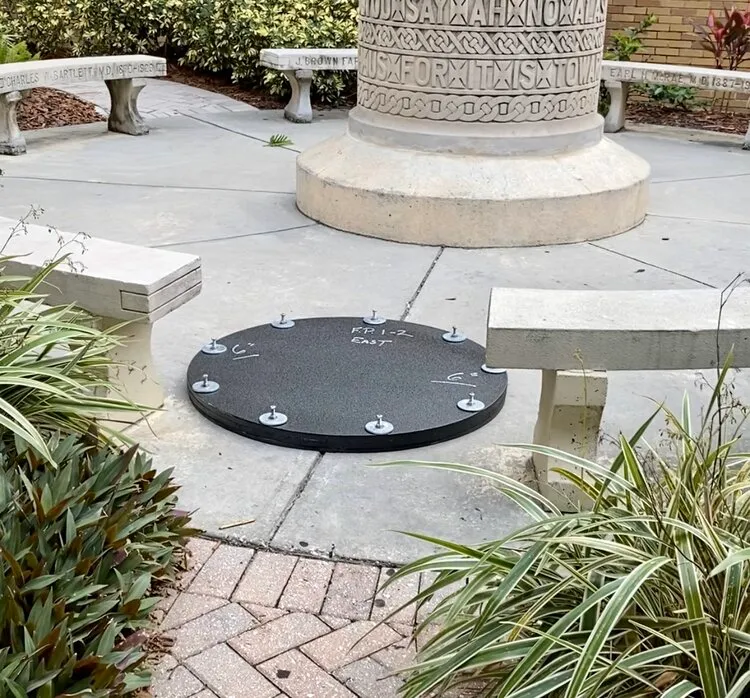

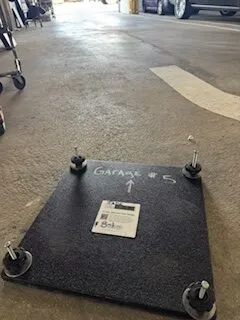

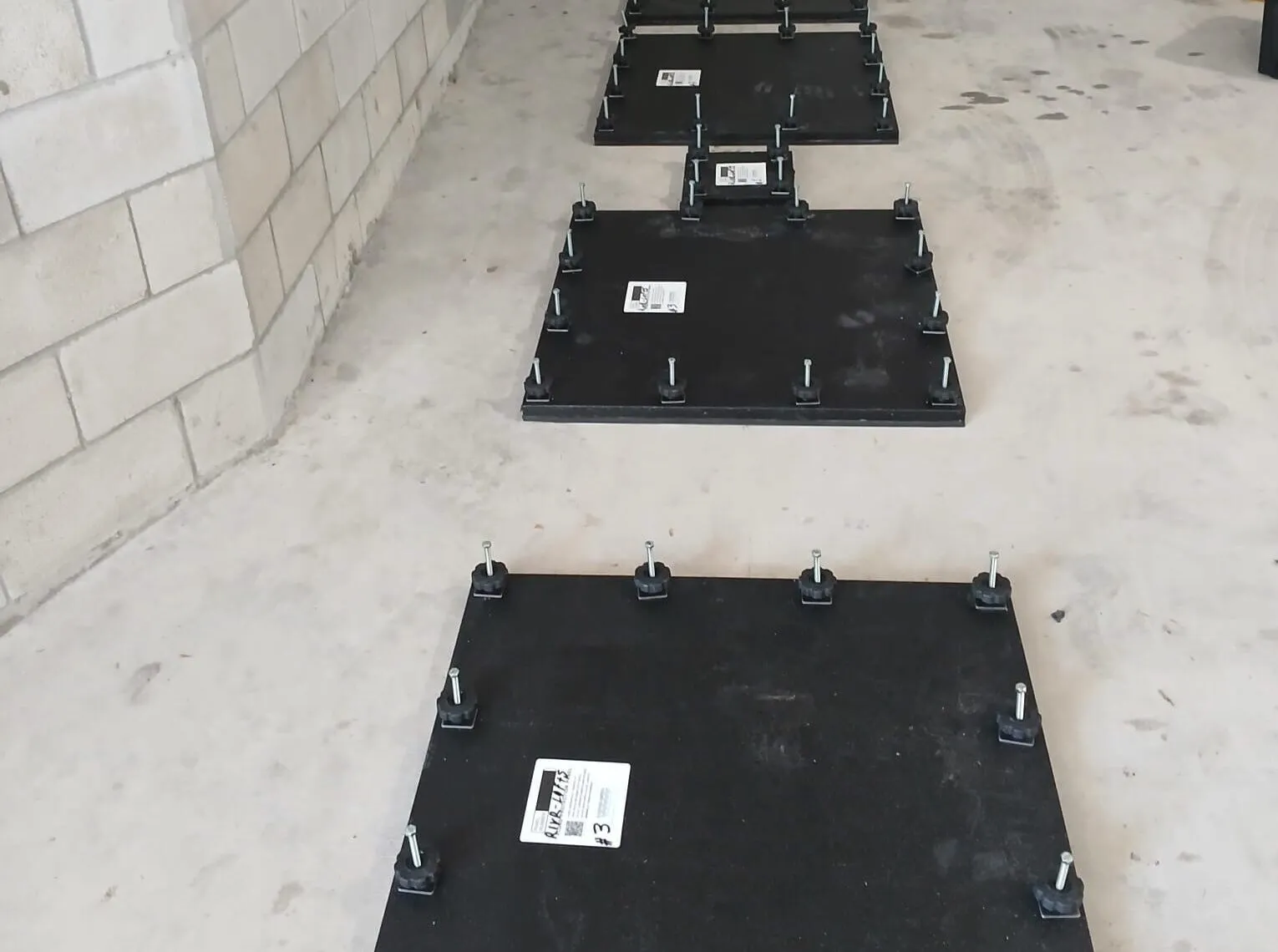

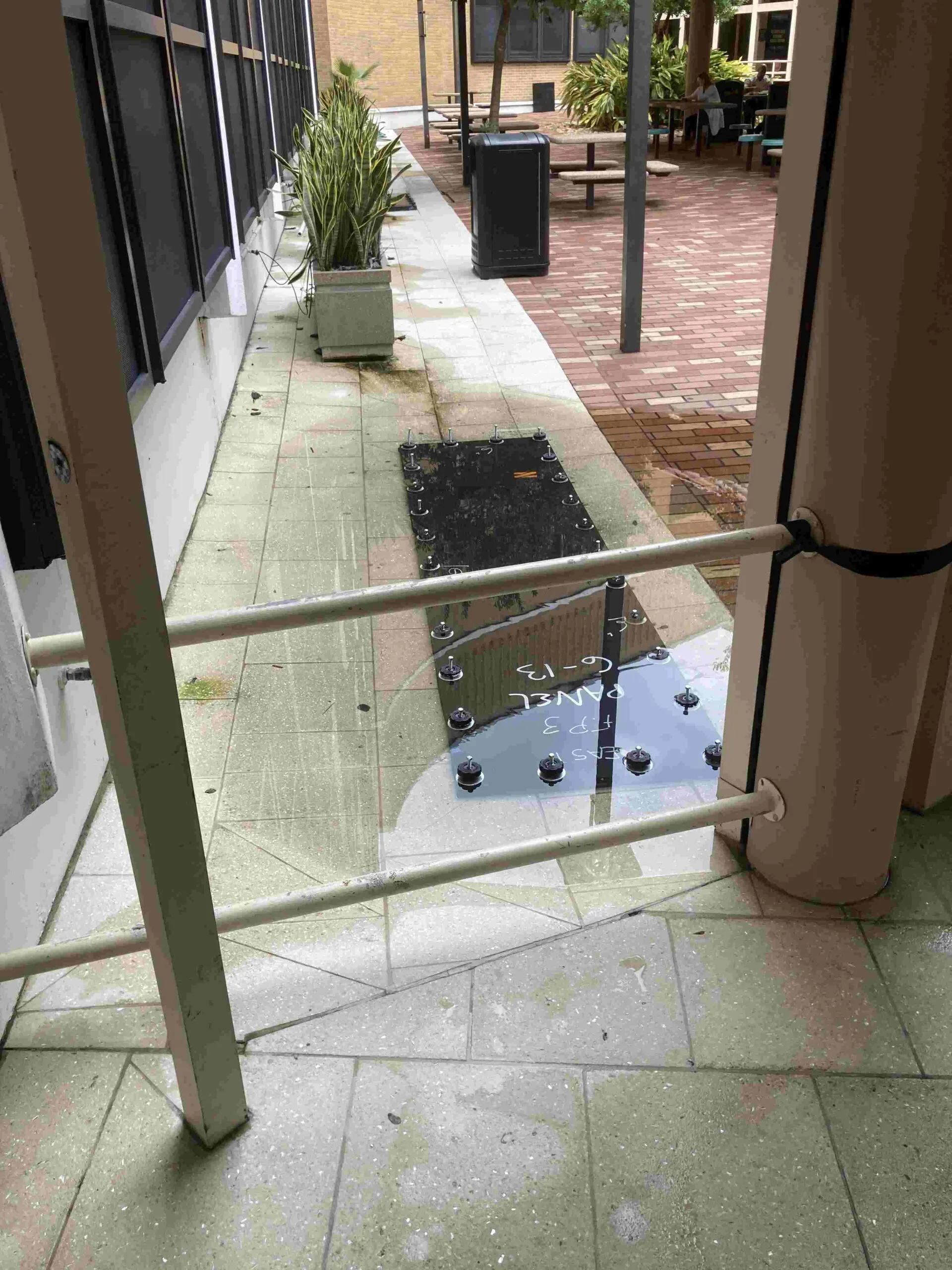

FRA Flood Drain Protection Deployed

Scroll to view more →

5 Step Process to Deploy FRA Floor Drain Protection

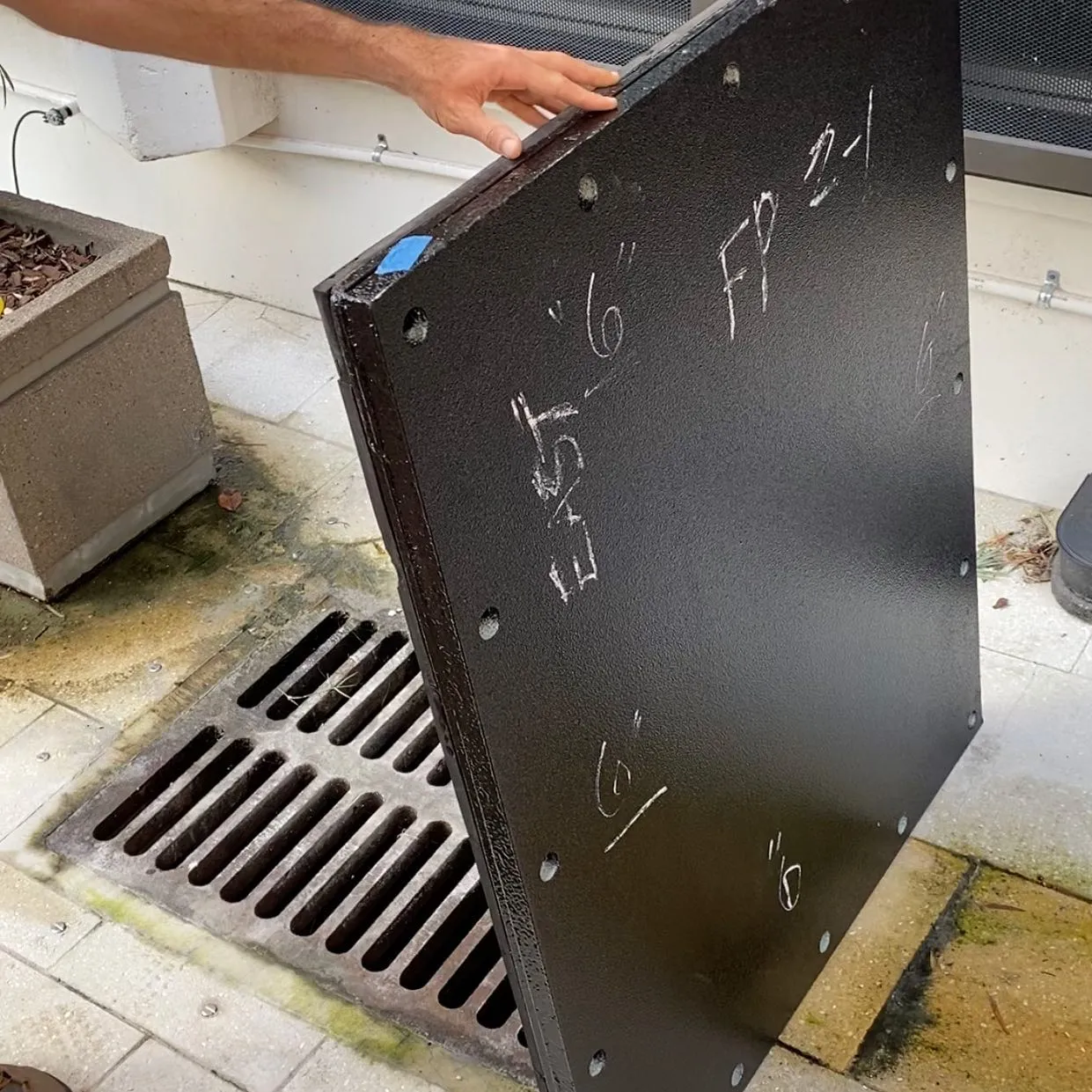

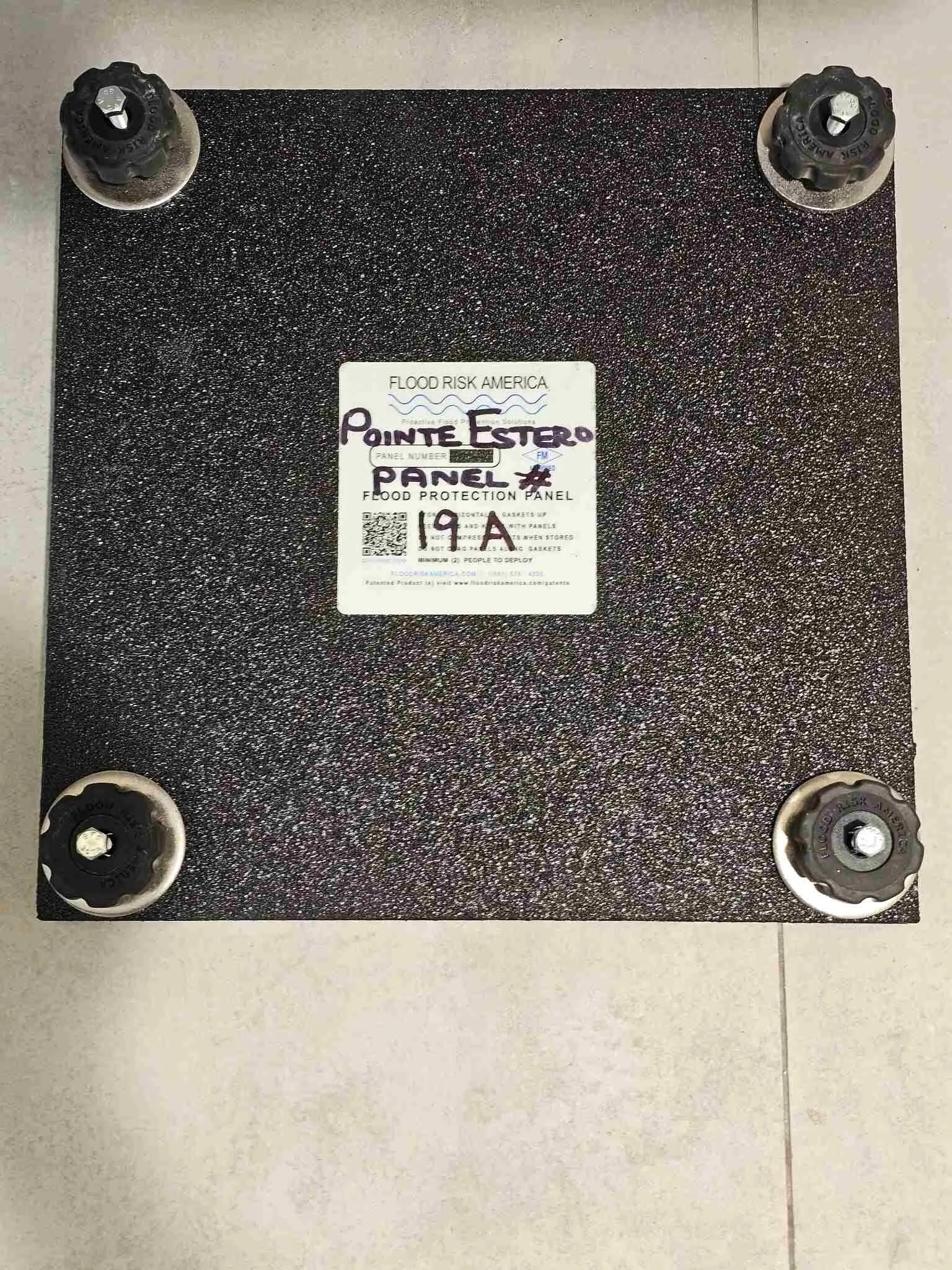

  • FRA Floor Drain Protection is lined up with the pre-existing holes to the anchors
  • Easy-Turn knob, gasket and dock washer is inserted into opening on the ground
  • Easy-Turn Knob creates a tool-less system to tighten FRA Floor Drain protection in place
  • Gasketing sytem seals against uneven surfaces
  • FRA Floor Drain Protection Install is Complete
  • Gasketing sytem seals against uneven surfaces
  • FRA Floor Drain Protection Install is Complete

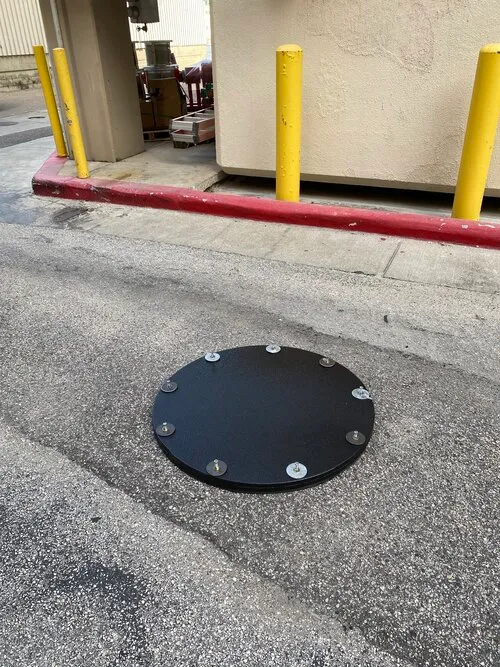

The FRA Flood Drain Protection is specifically designed with the client’s needs in mind. We have developed this technology to be impact resistant so that vehicles can drive over the protected area without damage while continuing to provide flood protection to the area and keep rising water from storm surge, king tides, and heavy rainfall at bay.

FRA Floor Drain Protection Deployment Video
